MULTI-TOUCH OVERLAYS

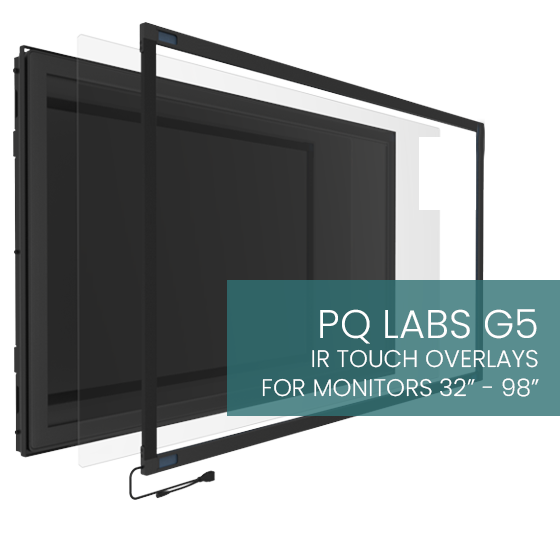

PQ Labs G5

IR TOUCH OVERLAYS FOR MONITORS 32" - 98"

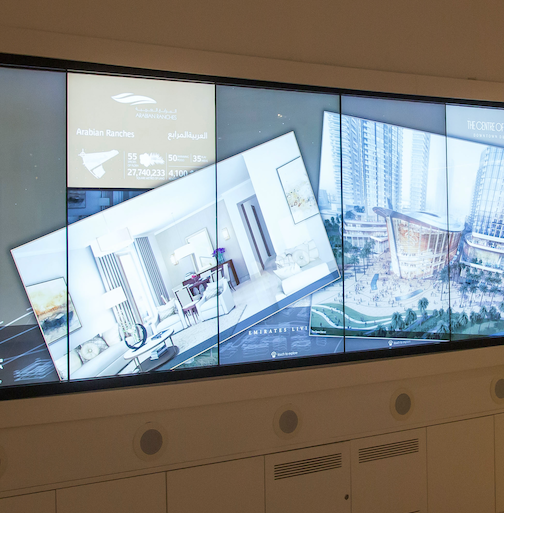

G4P Overlays for Video Walls

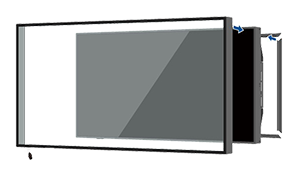

PQ LABS G7

P-CELL TOUCH OVERLAYS FOR MONITORS 32" - 98"

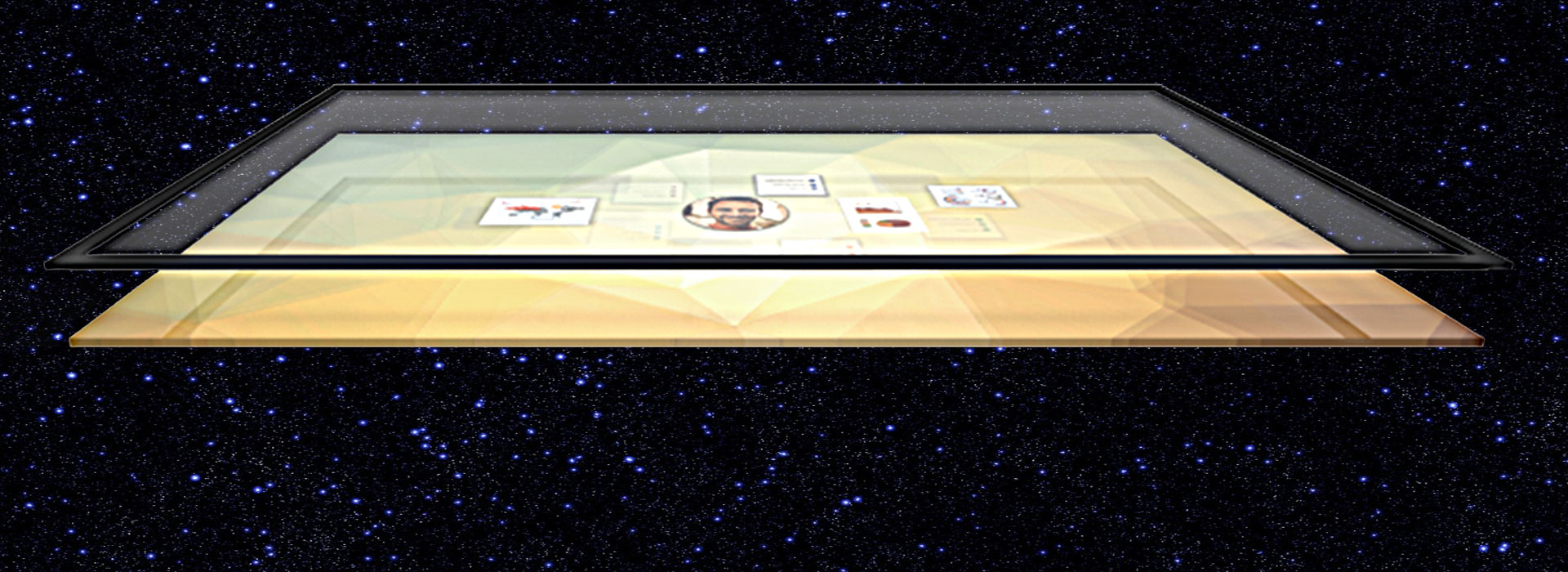

Multi-Touch Overlays
That Meet Every Budget

An economical solution for converting LCD displays, from 32" up to 98", into interactive multi-touch screen monitors.

Supplied with all necessary fixings the overlay attaches to the front of your existing monitor or TV, plugs into the USB port of your Mac or PC and a power source and that´s it - your monitor has been transformed into a multi-touch touch screen.

Comprising a narrow 21.5 mm x 8.6 mm frame with ultra-smooth glass, the PQ Labs touch system uses LED Cell imaging technology which offers accuracy, clarity, reliability, durability, as well as support for multi-touch gestures. Installation is very easy, as the video below shows. Self-adhesive pads and all necessary cables and drivers are included to allow the frame to plug-and-play straight from the box.

PQ Labs G5 Overlay Installation Video

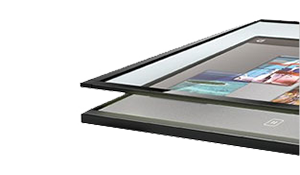

PQ Labs G5 TV OverlaysPQ Labs patented Infrared Cell Imaging Technology

True Multi-Touch, detecting up to 32 points simultaneously. The PQ Labs G5 Multi-touch overlay is plug-and-play solution for both developers and end-users offering exceptional durability and accuracy.

FEATURES

Finger, gloved hand or any other pointer
Object shape recognition (Palm, fist recognitions)

Size Range

32" - 98"

Touch Points

G5 2K Version: 2, 6, 12 or 32 touch points
G5 4K Version: 6, 12 or 32 touch points

Touch Fidelity

4K Model: < 0.5mm ⟨0.02 inch⟩
2K Model: < 1mm ⟨0.039 inch⟩

Sample Rate

Up to 250 fps

Overlay Thickness

8.8 mm

Glass

Mighty Glass

Glass Thickness

32" - 47" 3 mm
48" - 84": 4 mm

Waterproof

Anti-spill as standard, optional IP66 waterproofing available for 32" to 55" overlays

Assembly Method

Slot Assembly

Anti-Sunlight

Outdoor Full-Angle Anti-Sunlight with 12 and 32 touch point overlays. Available as an option for 6-point overlays

Power

USB Powered, cable included

Warranty

1 year

G5 Datasheet

Overlay Compatible Models

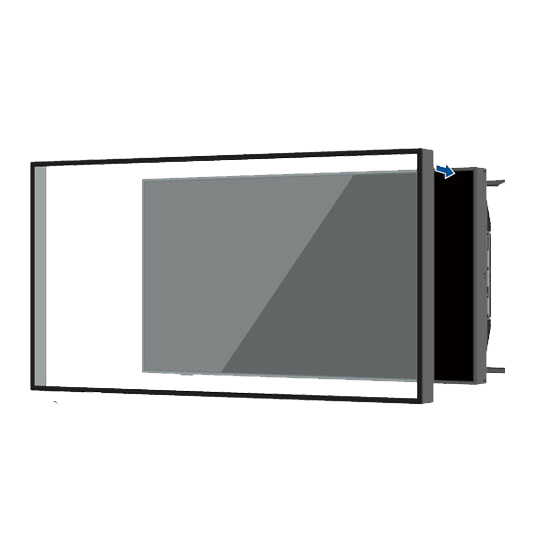

G7 for Standard TVsIntroducing Q-Force Technology

The state-of-the-art multi-touch overlay. G7 has all the features of G5 but with the addition of the new Q-Force technology which senses the pressure applied onto the display by adopting built-in force sensors around the screen. This enables pressure sensitivity for drawing & handwriting, and new possibilities with force sensitive user interface interaction.

FEATURES

3D Pen for Handwriting
Providing 4K Level Touch Fidelity

Size Range

40" - 98"

Touch Points

12, 32 or 50

Touch Fidelity

4K Model: < 0.5mm ⟨0.02 inch⟩
2K Model: < 1mm ⟨0.039 inch⟩

Sample Rate

Up to 250 fps

Overlay Thickness

8.8 mm

Glass

Mighty Glass

Glass Thickness

40" - 43": 3 mm
48" - 98": 4 mm

Waterproof

Anti-spill as standard, optional IP66 waterproofing available for 32" to 55" overlays)

Assembly Method

Slot Assembly

Anti-Sunlight

Outdoor Full-Angle Anti-Sunlight with 12 and 32 touch point overlays. Available as an option for 6-point overlays

Power

USB Powered, cable included

Warranty

2 years

G7 Datasheet

G7 Installation Guide

Overlay Compatible Models

Multi-Touch Applications

To take full advantage of the multi-touch capabilities of this device, you can download multi-touch development applications from the following software companies:

Touchtech Lima is a premium multi-touch software solution. It is designed for multi-touch table and wall displays to create interactive presentations using your existing files (pictures, videos, and documents etc).

NUITEQ´s multi-touch software product Snowflake Suite is a premium multi-touch software solution. It is designed for multi-touch table and wall displays to create interactive presentations using your existing files (pictures, videos, and documents etc).

MultiTouch pack from Aduma is all about engaging touch presentations. It is used across a variety of markets whenever there is a need to captivate and engage an audience.

Omnitapps Multi Touch Suite is the fully customizable (multi) touch application suite. It offers a collection of applications that offers you a unique way to present your products or services.
